Senekapasitet	180m 0.30mm
Utveksling	5,7:1
Kulelager	12
Maks Brems	11kg

Se video av produktet her.

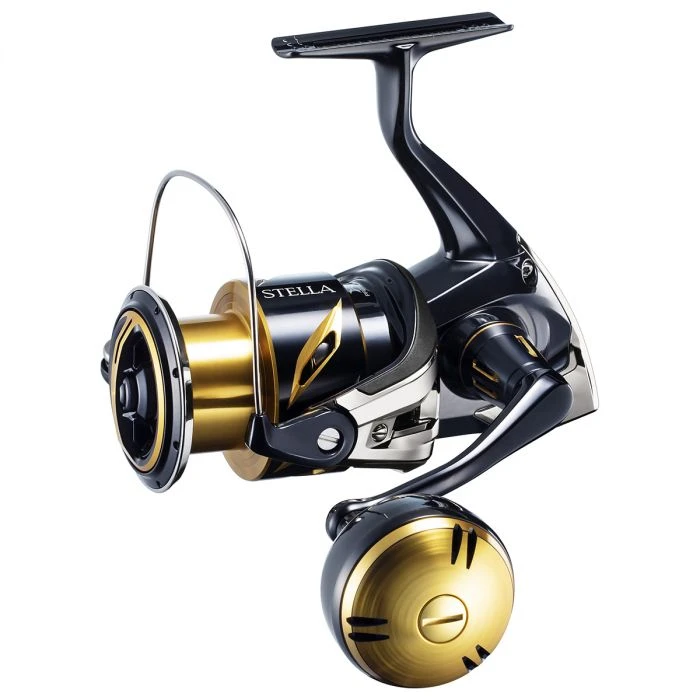

STELLA SW trenger ingen introduksjon: Det er Shimanos mest avanserte, holdbare, sterke og kraftige haspelsnelle som er anerkjent for sin kvalitet og holdbarhet av sportsfiskere over hele verden. Snellen har blitt forbedret på mange punkter: den er enda sterkere, mer solid , mer holdbar og kraftigere. STELLA SW er bygget for å være veldig sterk og kraftig, noe som gjør det mulig å fiske etter store saltvannsarter med haspel utrustning. Serien inkluderer mange forskjellige størrelser og girforhold for mange forskjellige teknikker og formål.

Hagane Body
The HAGANE Body is produced from high rigidity aluminium or magnesium. This creates stiffness and impact resistance, while at the same time eliminating flexing of the body. The result is a rocksolid housing and support for the moving internal gearing and greater efficiency throughout the reel.

Hagane Gear
The HAGANE Drive Gear is produced by Shimano’s coldforging technology, without the need for additional machining. This delivers a longlasting smoothness, strength, lightness
and power at the very heart of the reel. Traditional diecast, machined gears are less durable under heavy loads.

XProtect
The contact type triplelip structure is introduced to the roller clutch, the pivotal point concerning water resistance. In this structure, the first lip prevents water from entering through the space between the rotor and the body. In addition, the special grease between the second and third lip where it makes contact with the rotor collar located at the upper part of the roller clutch not only resists water from entering but also minimizes friction resistance. Without jeopardizing the ‘silky smooth rotation capacity’, the vital feature of STELLA SW, exceptional water resistance, has been achieved to withstand the crashing and splashing of waves and spray.

Silent Drive
Removed ‘clicking’ sound and ‘handle play’ and overall improved smooth reeling.

ARC Spool
Shimano ARC Spool is a patented spool design with an angled spool lip. This design enables the line to leave the spool with less friction and in smaller coils resulting in longer more
accurate casts. ARC spools are proven to reduce backlash and wind knots when using braid.

One Piece Bail
The onepiece bail wire has no gap for line to snag on during normal operation. Made of Stainless Steel, it reduces friction and allows the line to get onto the line roller quicker.

Infinity Drive
INFINITY DRIVE is a new construction that eliminates sliding resistance and realizes light winding in both load and no-load conditions. INFINITY DRIVE is a non-contact construction where the inside of the pinion gear does not touch the main shaft. This reduction in sliding resistance is achieved by the application of a special low friction bushing which holds the main shaft and in addition a by the application of a special surface treatment to the main shaft itself. Handle rotation torque is reduced by approximately 30%* compared to the conventional X-SHIP construction.

Heatsink Drag
During drag operation accumulated heat in the drag mechanism reduces drag force and in addition the increase of spool temperature can damage PE lines. The conventional X TOUGH drag realizes an overwhelming improvement in both drag performance and durability with a revolutionary structure in which the drag mechanism part is located at the lower part of the spool. Shimano’s HEATSINK DRAG is the evolution of the conventional X TOUGH drag and manages the heat efficiently in two ways. Firstly, heat is released through a heat sink panel on the bottom of the spool resulting in 50%* more drag force retainment. Secondly, an insulation sheet in between the drag mechanism and the spool surface area results in a 30%* lower spool temperature.

X Shield
By providing dependable sealing structures and gaskets at necessary points, including the reel body and lid joint and the contact point of the spool and drag knob, possible water ingress is blocked. This double protection provides high reliability and durability to the STELLA SW when used in extreme saltwater conditions.

E.I. Surface Treatment
E.I Surface treatment doubles the durability of the spool surface and gives less wear out by eliminating oxidation.
